Oztec Power Unit, Shaft,

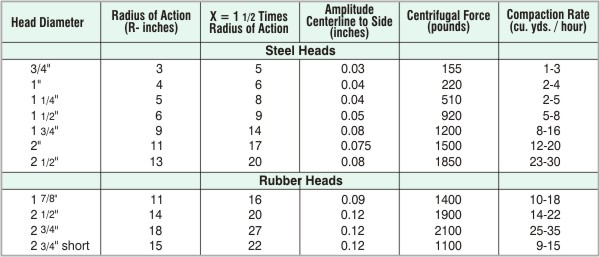

Vibrator Head Selection Chart |
 |
 |
|
|
|
|
Radius of Action
- The most important bit of information needed for complete
consolidation.
Radius of Action is the distance from the center of the vibrator to
the outer edge, where complete consolidation takes place (see
diagram).
For quality concrete Oztec lists conservative values for "Radius of
Action". Complete consolidation is necessary for low slump concrete
with close meshed reinforcement bars, high strength concrete and
architectural concrete.
Radius of Action can be twice the listed values when slump is high
or super plastisizers are used. It is important these values are
used only as a general guide. Specifications are subject to change. |
 |
|
| |
All dimensions shown are
nominal, actual dimensions may vary. Call for details. |
| |
|
|
|
